Enables Electronics Integrated Photovoltaic (EIPV) products. This series consists of Sphelar Array F12, compact but relatively high power PV modules; Sphelar One, a single spherical cell molded in a plastic case easy to handle; and Sphelar Dome / Mini Dome, designed for outdoor sensing and wireless devices.
Sphelar Array F12
Small, efficient and easy to design. Based on Sphelar® technology, Sphelar Power provides small-sized solar modules, inspiring part of an eco-friendly life. Six different voltage choices are offered which range from 0.48 to 6 (Vpm).
| Model No. | Maximum Power Pmax (mW) |
Maximum Power Voltage Vpm (V) |
Maximum Power Current Ipm (mA) |
L x W x T | Package | Applications |
|---|---|---|---|---|---|---|
| KSP-F12-1S12P-W1-X | 13.5 | 0.48 | 28.0 | 24×9.5×5.1 | concentrating polycarbonate case |
•6 types of a series of 12 parallels to a parallel of 12 series •Relatively high voltage in its compact size Independent power supplies for the IC chips and sensors of low-power type |
| KSP-F12-2S6P-W1-X | 13.5 | 0.97 | 14.0 | 24×9.5×5.1 | ||
| KSP-F12-3S4P-W1-X | 13.5 | 1.46 | 9.2 | 24×9.5×5.1 | ||
| KSP-F12-4S3P-W1-X | 13.5 | 1.95 | 6.9 | 24×9.5×5.1 | ||
| KSP-F12-6S2P-W1-X | 13.5 | 2.97 | 4.5 | 24×9.5×5.1 | ||
| KSP-F12-12S1P-W1-X | 13.5 | 6.00 | 2.2 | 24×9.5×5.1 |
Sphelar One
A spherical micro solar cell molded in a plastic case. This set reflects the feature of Sphelar® cell that captures the light from all directions.
| Model No. | Maximum Power Pmax (mW) |
Maximum Power Voltage Vpm (V) |
Maximum Power Current Ipm (mA) |
L x W x T | Package | Applications |
|---|---|---|---|---|---|---|
| KSP-OC-1830MR-ER-X03 | 0.60 | 0.481 | 1.25 | φ3×5.3 | φ3 plastic mold | •In Sphelar® products, spherical cells encapsulated by plastic molding •uitable for prototype development of Sphelar® cells integraded photovoltaic modules •Wide viewing angle (Light reception from all directions) |
| KSP-OC-1850MR-ER-X01 | 0.66 | 0.484 | 1.38 | φ5×7.7 | φ5 plastic mold | |
| KSP-OC-1850MR-ER-FL01 | 0.66 | 0.484 | 1.38 | φ5×7.5 | φ5 plastic mold without fringe |
Sphelar Cylinder
Compact module designed by series connection of the required number of cells (required voltage) and resin molded. High power generation is demonstrated with minimum footprint. Standard line up from 1 series to 10 series (Optionally, even higher voltage is supported). In addition, it is possible to obtain the required current by using multiple in parallel.
| Model No. | Maximum Power Pmax (mW) |
Maximum Power Voltage Vpm (V) |
Maximum Power Current Ipm (mA) |
L x W x T | Package | Applications |
|---|---|---|---|---|---|---|
| KSP-CY-01S01P‐SA-X | 0.49 | 0.49 | 1 | φ3.2×9.3 | Epoxy resin package | •Power module for small Power equipment •Power module for electrolysis of water |
| KSP-CY-02S01P‐SA-X | 0.98 | 0.98 | 1 | φ3.2×11.0 | ||
| KSP-CY-03S01P‐SA-X | 1.47 | 1.47 | 1 | φ3.2×12.6 | ||
| KSP-CY-04S01P‐SA-X | 1.96 | 1.96 | 1 | φ3.2×14.3 | ||
| KSP-CY-05S01P‐SA-X | 2.45 | 2.45 | 1 | φ3.2×15.7 | ||
| KSP-CY-06S01P‐SA-X | 2.94 | 2.94 | 1 | φ3.2×17.6 | ||
| KSP-CY-07S01P‐SA-X | 3.43 | 3.43 | 1 | φ3.2×19.3 | ||
| KSP-CY-08S01P‐SA-X | 3.92 | 3.92 | 1 | φ3.2×20.9 | ||
| KSP-CY-09S01P‐SA-X | 4.41 | 4.41 | 1 | φ3.2×22.6 | ||
| KSP-CY-10S01P‐SA-X | 4.90 | 4.90 | 1 | φ3.2×14.4 |
Sphelar® Belt Cylinder（SBC) Module

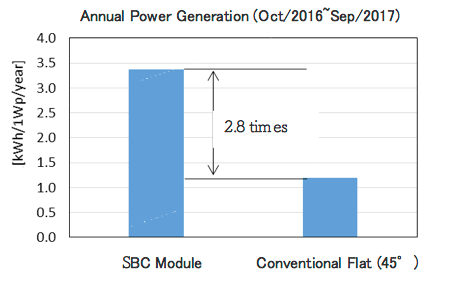

It has a structure in which the Sphelar belt has a cylinder structure and is sealed in acrylic resin. In addition, the directivity is greatly reduced by the upper spherical lens structure, so light can be received at a wide angle. As a result, the power generation is higher than that of the flat module with the same output. It is highly resistant to dirt and snow, and is expected to be used for power supply to sensor network devices and other products with high design.

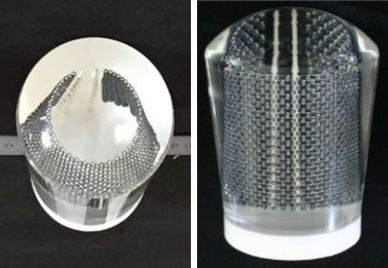

SBC Module（Left: from top, right: from side）
| 形名 | Isc (mA) |
Voc (V) |
Pmax (mW) |
Vpm (V) |
Ipm (mA) |
Size (mm) |
Mass (g) |
Package |
|---|---|---|---|---|---|---|---|---|
| SBC Module | 54.7 | 5.78 | 251 | 4.94 | 50.9 | Φ61.5～77 95.3(H) |
390 | Acrylate Resin |
